| CAMERA | |
|---|---|
| Image Sensor | 1/2.8'' Progressive Scan CMOS Not Starlight Sensor |
| Lens | Focal Length: 4 mm Aperture: F2.0 Field of View: 98° (Diagonal), 83°(Horizontal), 45°(Vertical) |

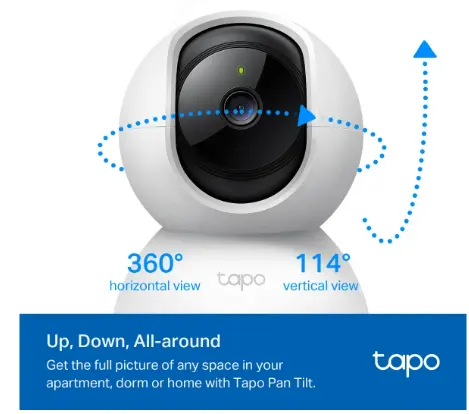

| Motion Range | Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 70° (110.8° Tilt Coverage) |
| Night Vision | 850 nm IR LED (30 ft / 9 m) |
| Lighting | / |
| Interface & Button | 1× RESET Button 1× MicroSD Card Slot (Up to 512GB) |
| Hub Compatibility | / |
| HUB | |
|---|---|
| Device Compatibility | / |
| Connection Capacity | / |
| Interface & Button | / |
| VIDEO & AUDIO | |
|---|---|
| Maximum Resolution | 2K 3MP (2304 x 1296 px) |
| Frame Rate | 15 fps |
| Digital Zoom | / |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3D DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 88dB (Level measured at 4-inch/10-cm distance) |
| STORAGE | |
|---|---|
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) General Information about using MicroSD Cards > |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION and NOTIFICATIONS | |
|---|---|
| Sensor | / |
| AI Detection | Motion Detection Person Detection BabyCry Detection |
| Activity Zones | Yes |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| NETWORK | |
|---|---|
| Network Connectivity | Connect via Wi-Fi |
| Ethernet Port | / |
| RTSP | Yes |
| ONVIF | Yes |
| SECURITY | |
|---|---|
| Security | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
| POWER | |
|---|---|
| Power Source | 9V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | DC9.0V/0.6A(DC Power) |
| GENERAL | |
|---|---|
| Smart Integration | Google Assistant, Amazon Alexa |
| Mounting Options | Tabletop Ceiling-Mounted |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -20℃~60℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| Dimensions ( W x D x H ) | 3.36 × 3.42 × 4.63 in (85.4 × 86.8 × 117.7 mm) |
| Package Content | TC71 Camera Power Adapter Quick Start Guide Mounting Screws Mounting Template Camera Base Mounting Anchors |
| Certifications | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
